Noise Cut Transformer-BOXLESS
| Table | PRI.V. | SEC.V. | CAPACITY | DWG,NO |
|---|---|---|---|---|
| NESH※※※※TVNN A | 100-110-115 | 100-110-115 | 500VA ~ 5kVA | H4-26958e-1 |
| NESH※※※※TVNN B | 190-200-210 | 100-110-115 | 500VA ~ 5kVA | H4-26959e-1 |
| NESH※※※※TVNN D | 190-200-210 | 200-210-220 | 1kVA ~ 4kVA | H4-26991e-1 |
| NESH※※※※TVNN E | 380-400-415 | 200-210-220 | 1kVA ~ 4kVA | H4-26962e-1 |
| CAPACITY | TERMINAL (P/S) |

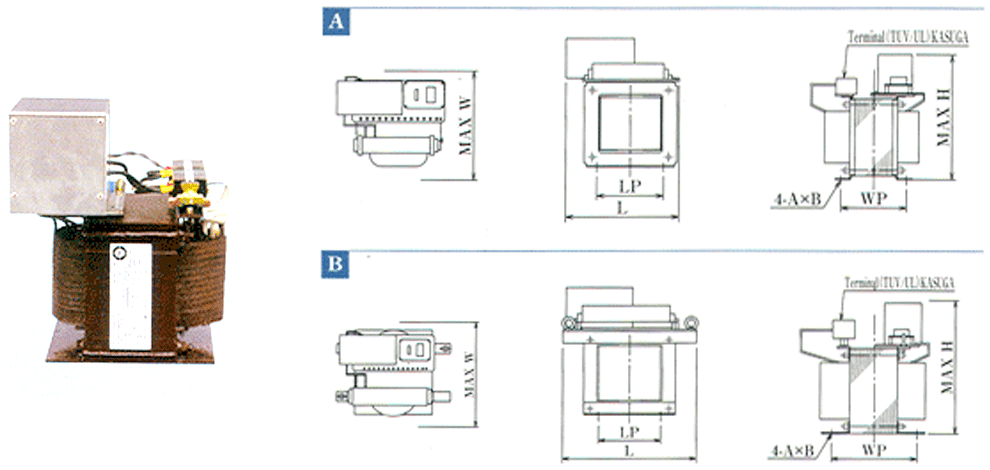

L | LP | W | WP | H | A x B | kg | REMARK |
|---|---|---|---|---|---|---|---|---|---|
| 500VA | TX20 | 250 | 120 | 230 | 94 | 255 | Φ8x15 | 14 | A |
| 1kVA | TX20 | 240 | 140 | 230 | 125 | 280 | Φ10x15 | 20 | A |
| 1.5kVA | TX20 | 265 | 160 | 265 | 135 | 290 | Φ10x15 | 25 | A |
| 2kVA | TX20 | 265 | 160 | 290 | 160 | 290 | Φ10x15 | 30 | A |
| 3kVA | TX60 | 340 | 160 | 320 | 180 | 315 | Φ10x15 | 39 | B |
| 4kVA | TX60 | 340 | 160 | 335 | 190 | 355 | Φ10x15 | 49 | B |
| 5kVA | TX60 | 340 | 180 | 340 | 190 | 380 | Φ13x18 | 57 | B |
